The family of bombs Mark 84

The family of bombs Mark 84.

Link for purchase:
https://www.cgtrader.com/3d-models/military/other/mk-84-bomb

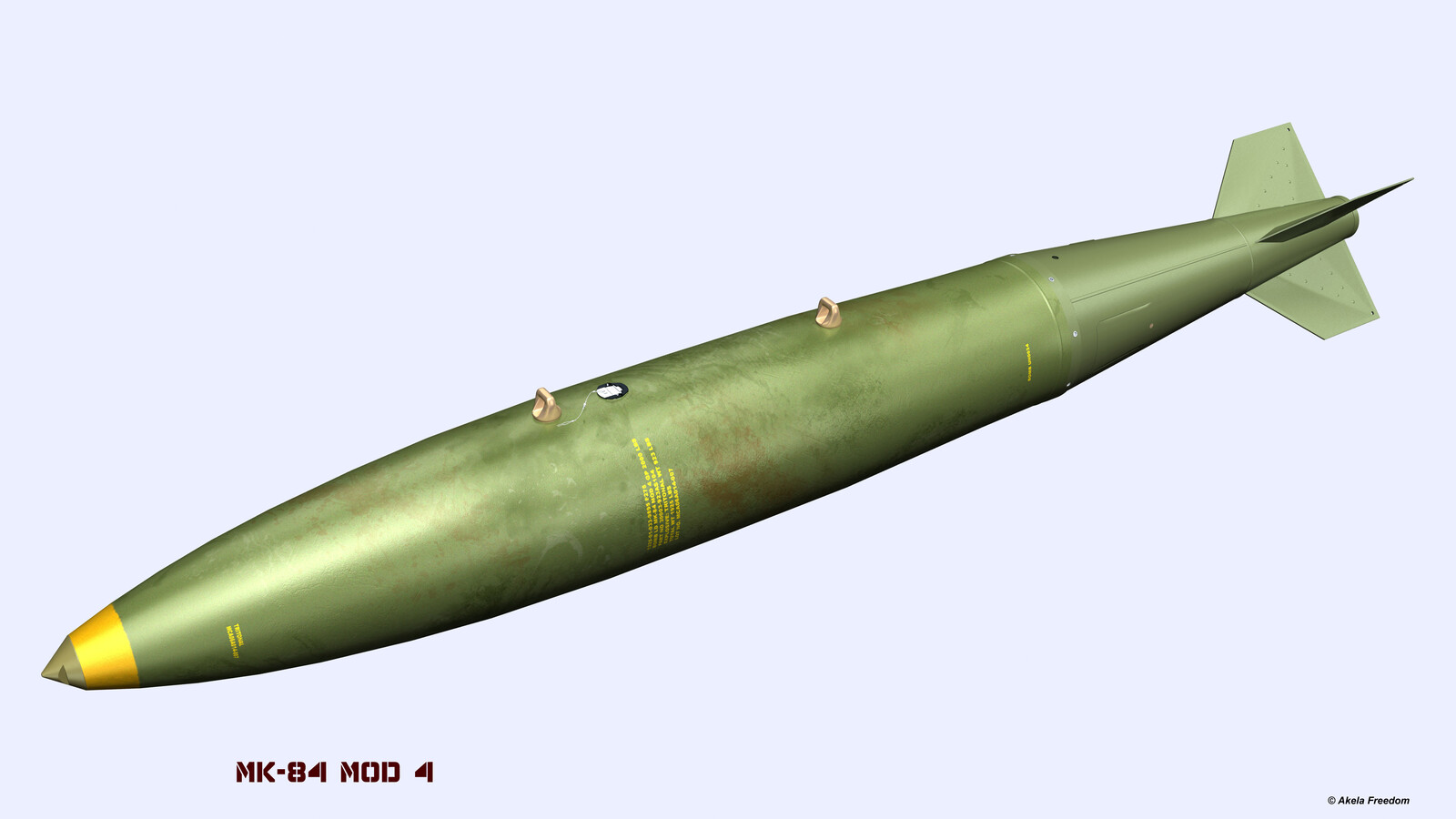

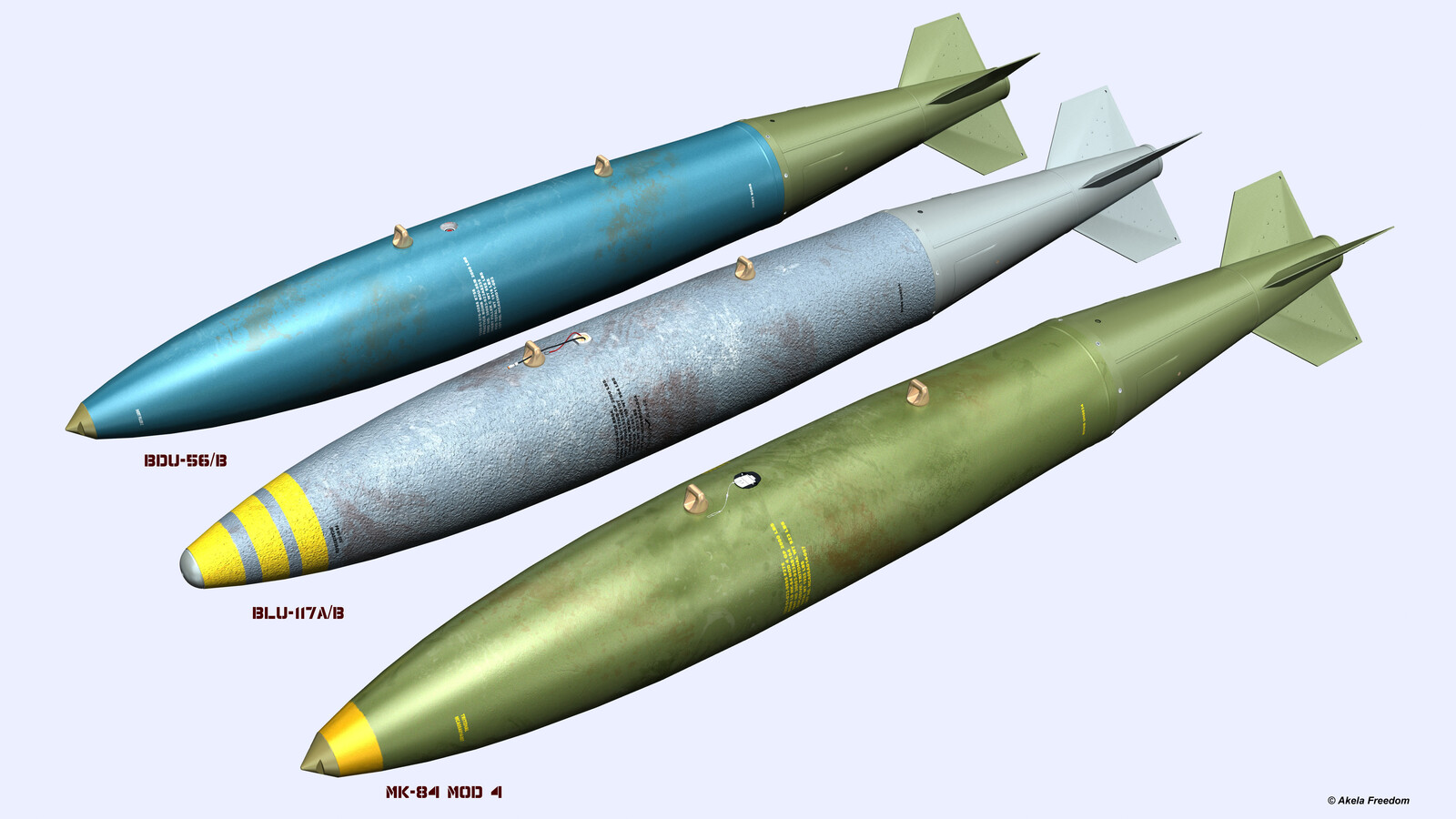

The MK-84 is the largest of the Mark 80 series. The Mark 84 is Low Drag General Purpose (LDGP) bomb and has a nominal weight of 2,000 lb (907.2 kg). MK-84 loaded with Tritonal high explosive filler.

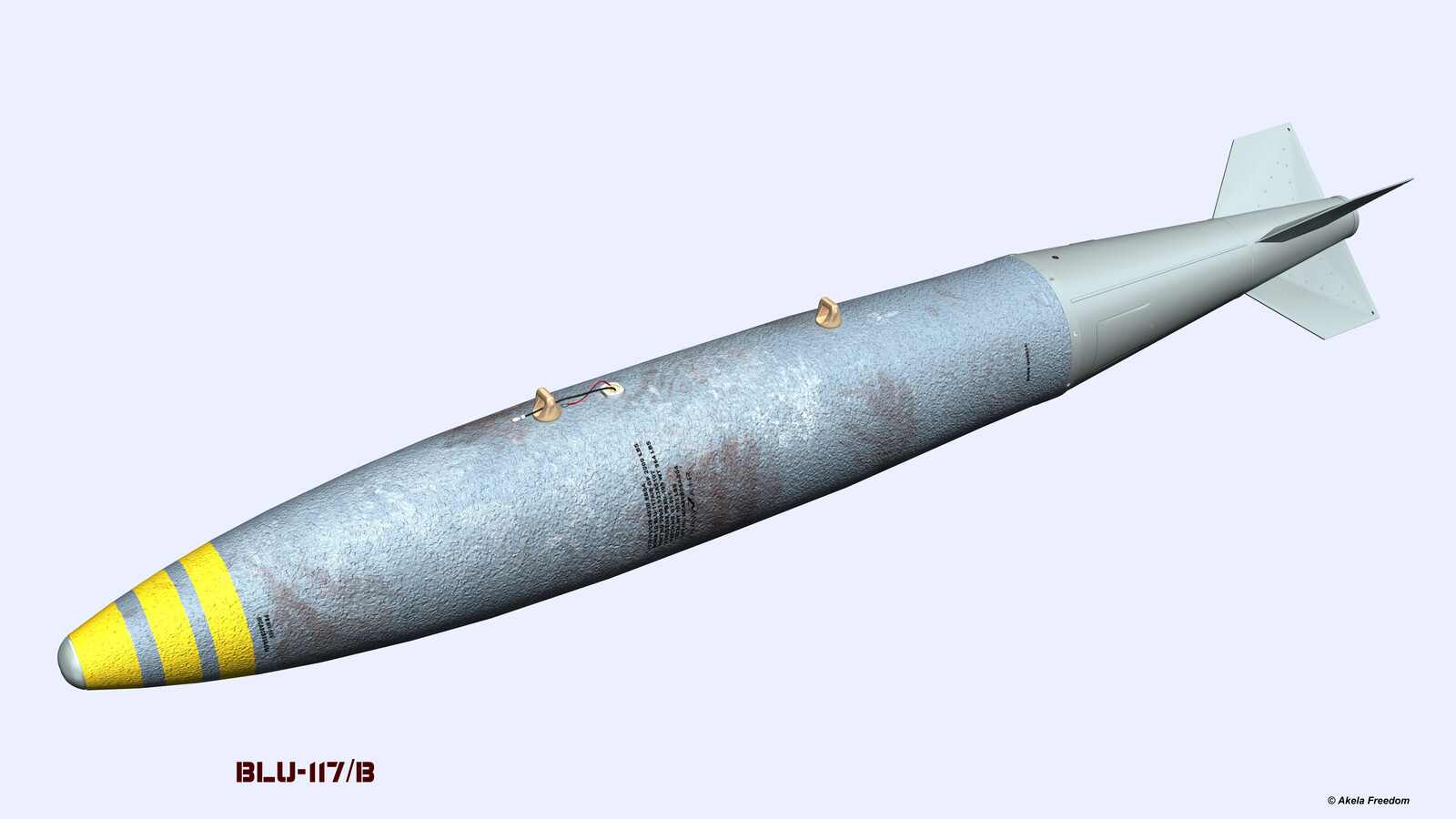

The BLU-117A/B is a 2,000-pound bomb loaded with an insensitive munition PBXN-109 filler.
The bomb bodies have a thermal protective coating.

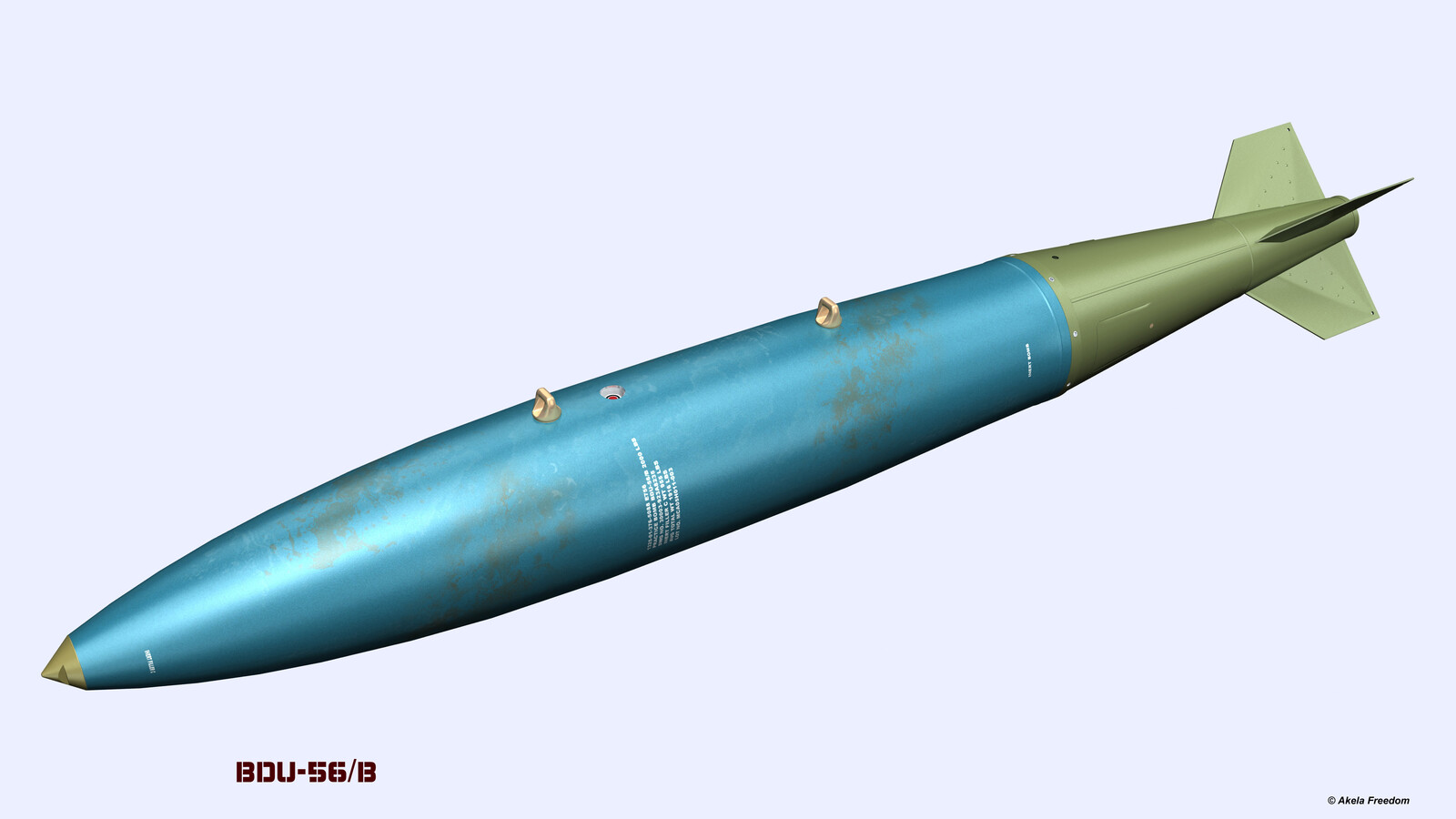

The BDU-56/B is used as Practice Bomb.

MK-84 in details:

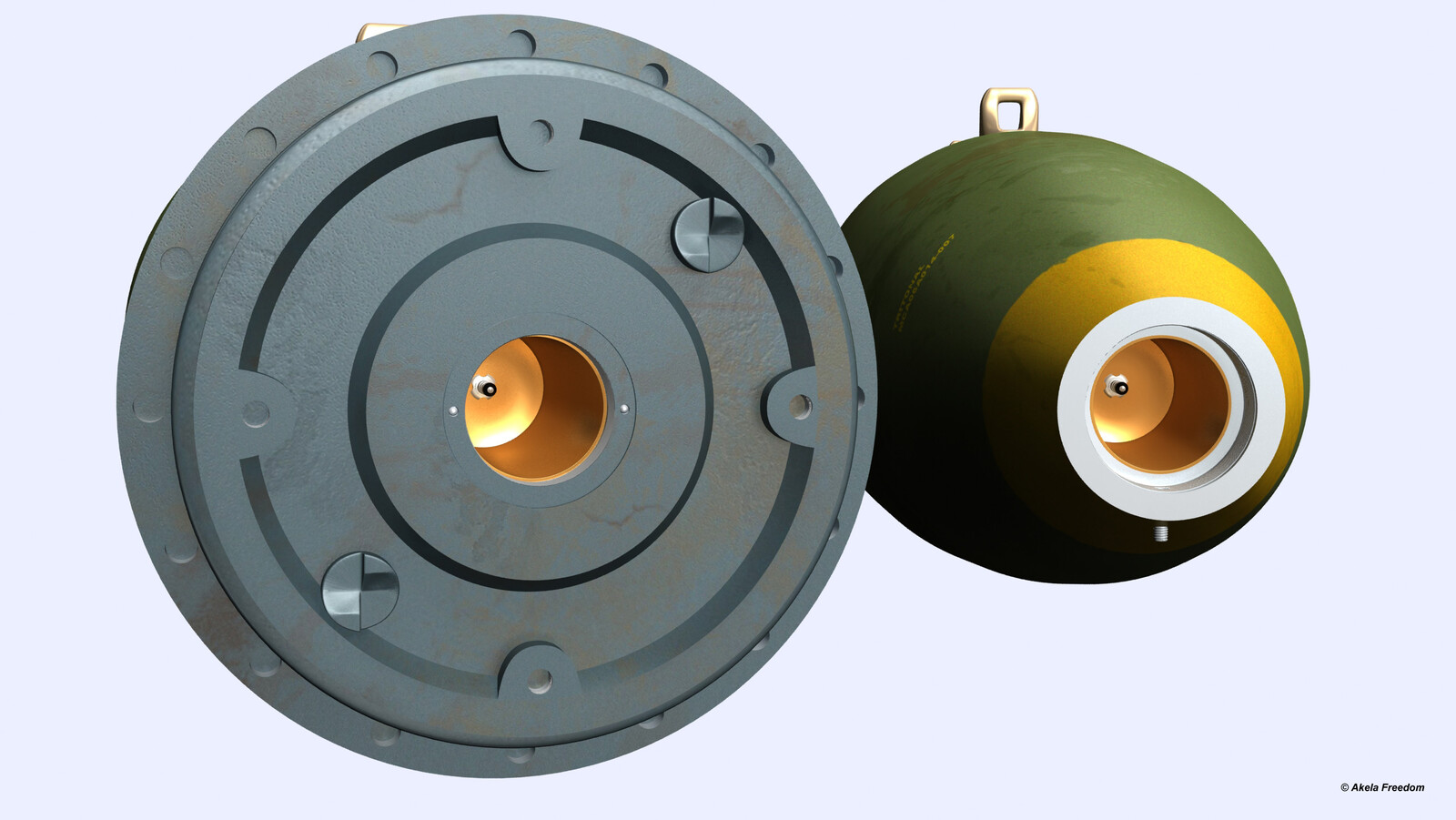

The bomb MK-84 has two wells for fuses. The nose well section for the mechanical or electronic fuzes, adapter booster, proximity sensor or penetrator plugs. The tail well section for the mechanical or electronic fuzes.

MK-84 in details:
The ogive nose plug. A support cup is used in the nose well with the ogive nose plug to provide a solid structure to the bomb.

MK-84 in details:

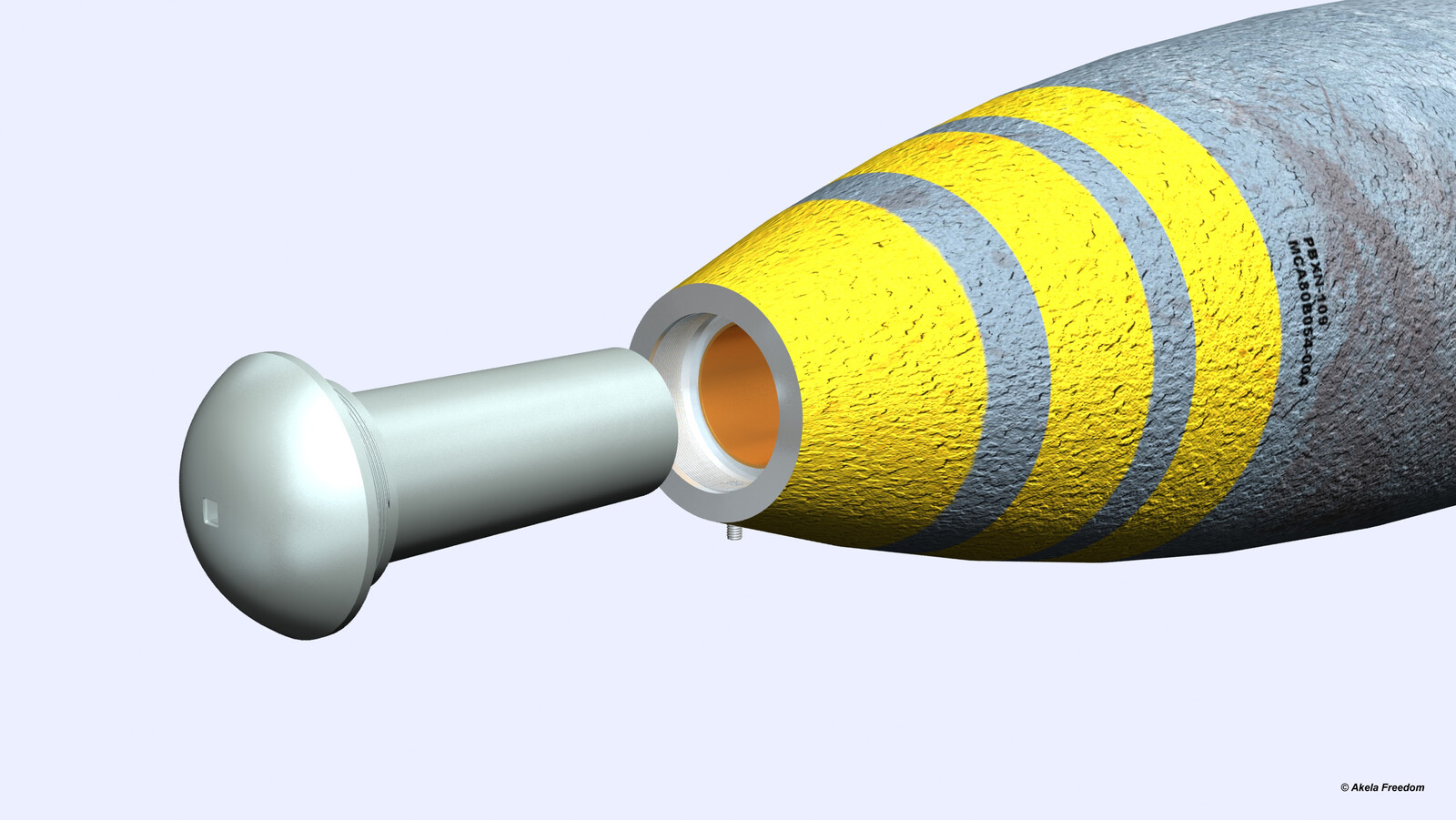

The hemispherical Solid Nose Plug MXU-735A/B.

MK-84 in details:

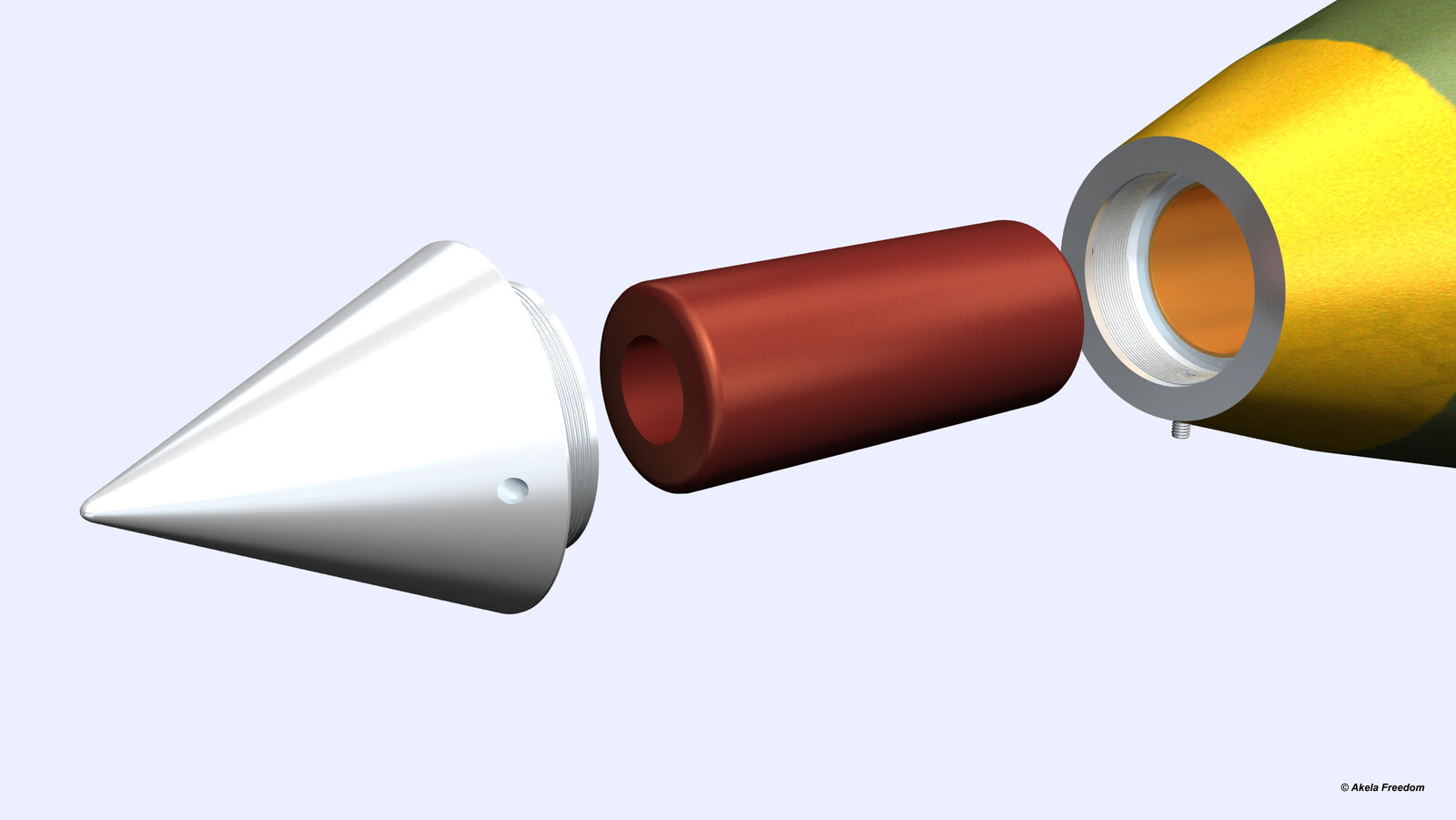

Sometimes using a special conical plug to enhance the better penetration.

MK-84 in details:

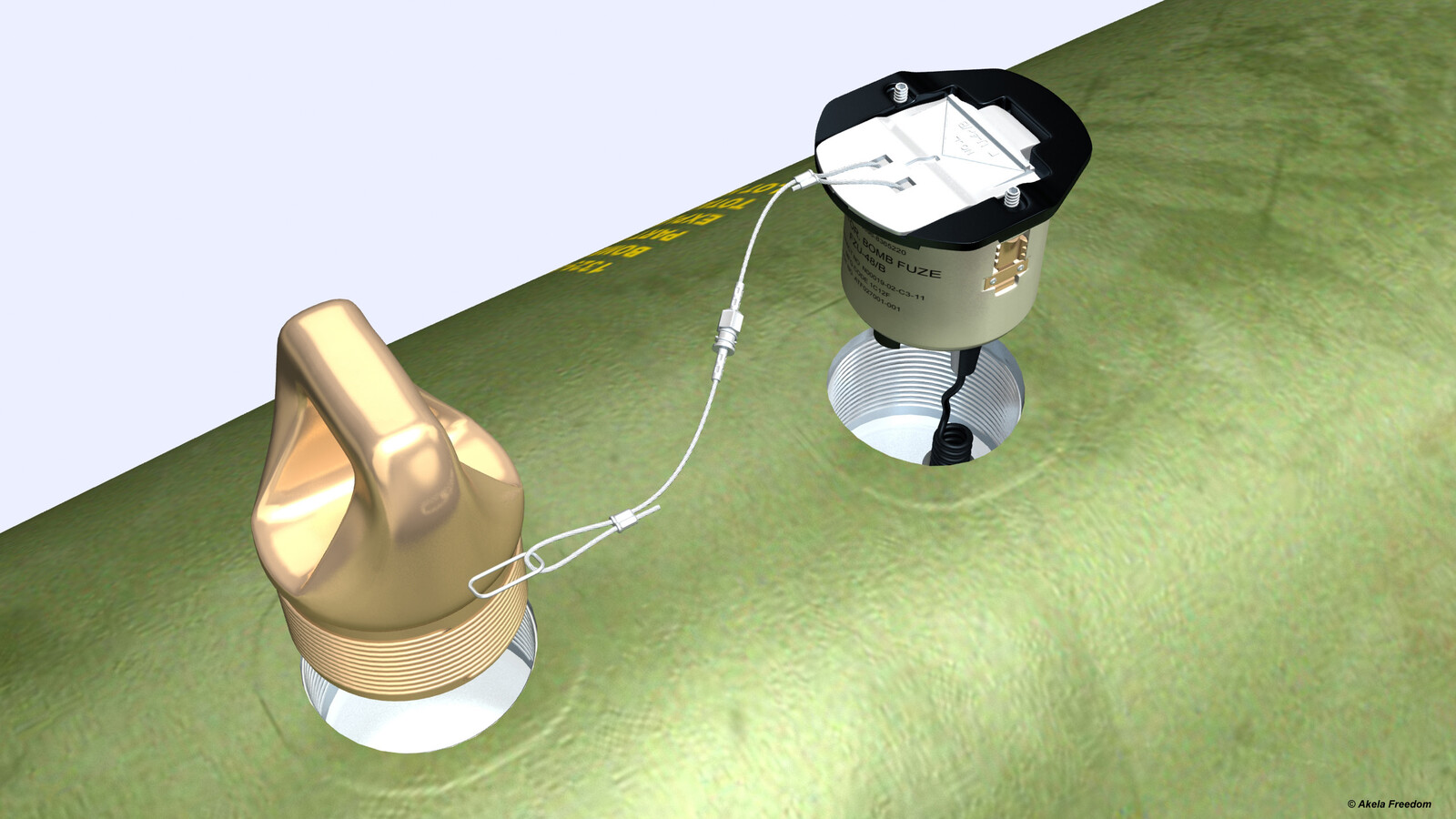

The wells on the top of the bomb body serve for installations suspension lugs MK 3 MOD 0 and one charging well. Here we see the installation of the initiator FZU-48/B.

MK-84 in details:
And here is the installation of MK-122 Safety Arming Switch.

MK-84 in details:

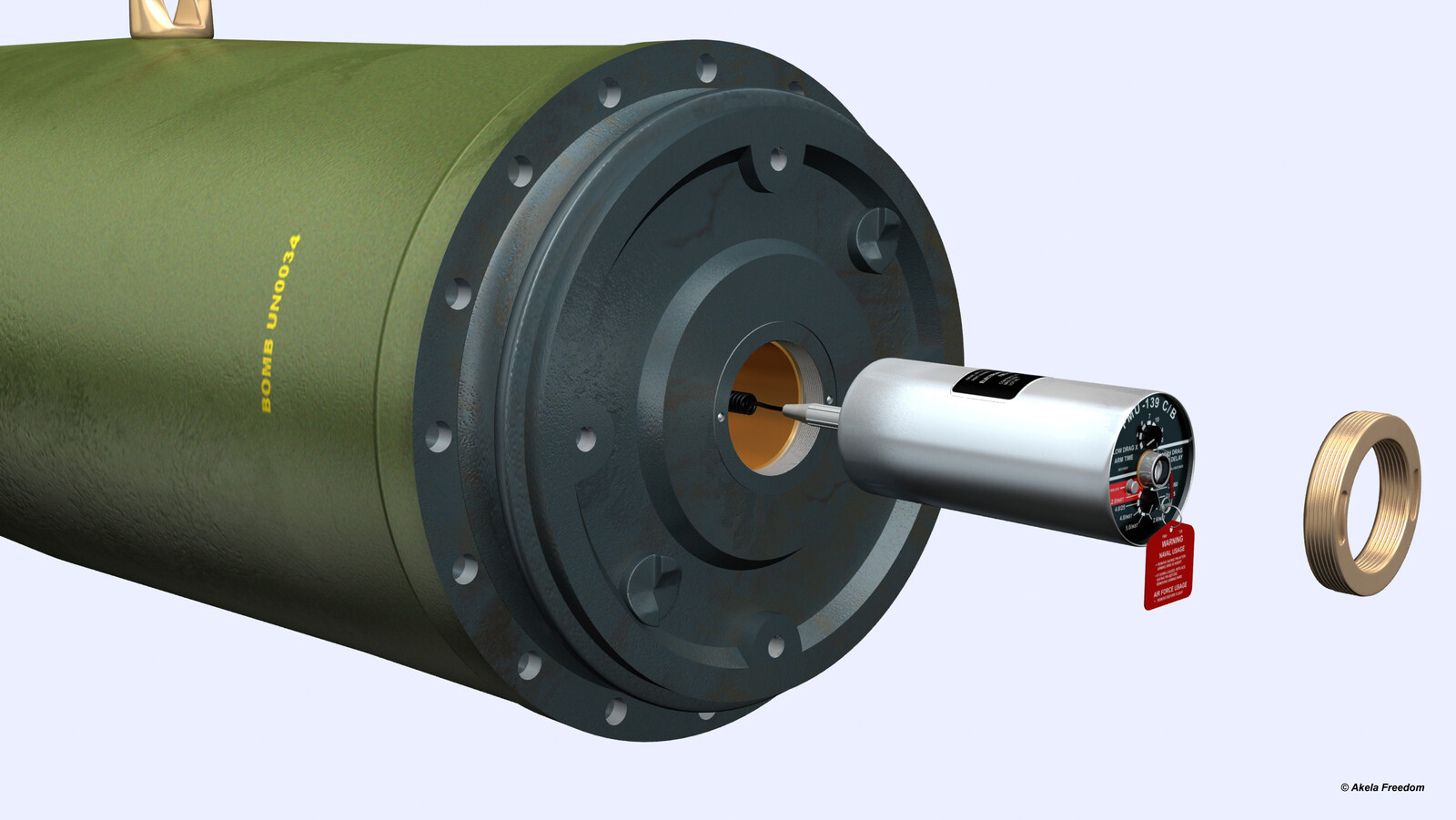

The FMU-139 fuze is inserted into tail fuze well and the closure ring is tighten.

MK-84 in details:

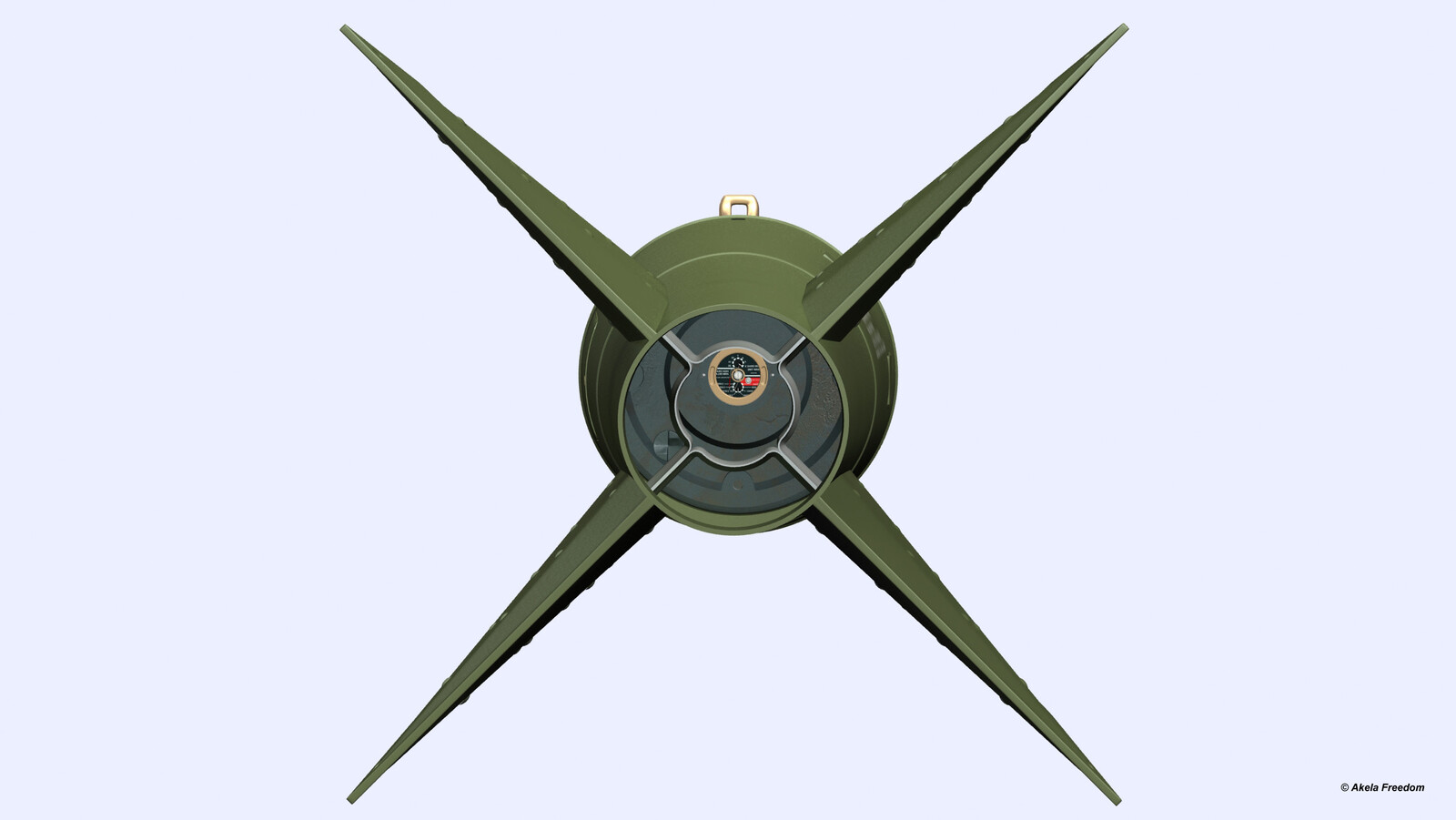

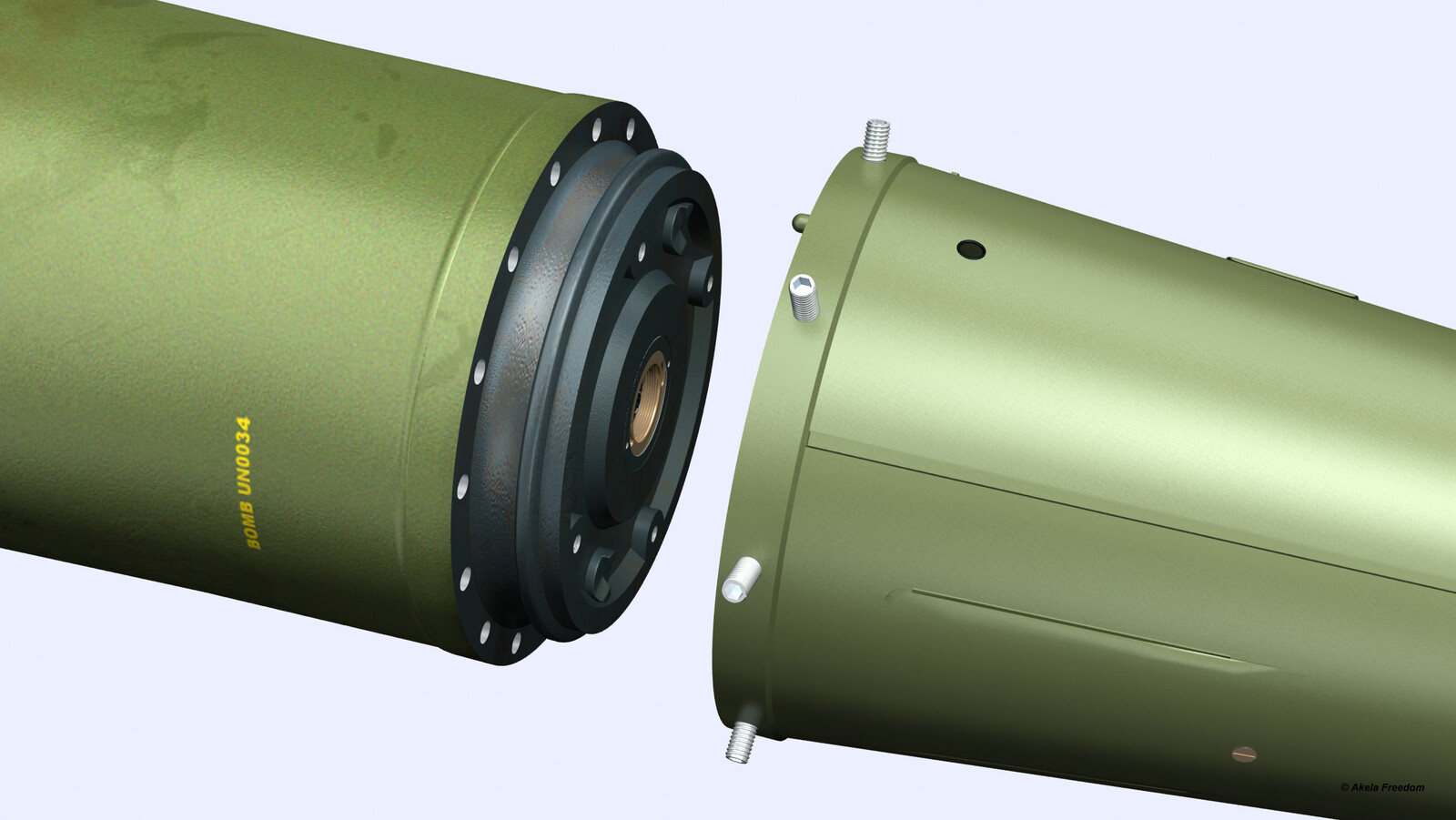

The conical fin constructed of a heavy steel with welded joints. The cone tapers down to four evenly spaced fixed fins.

MK-84 in details:

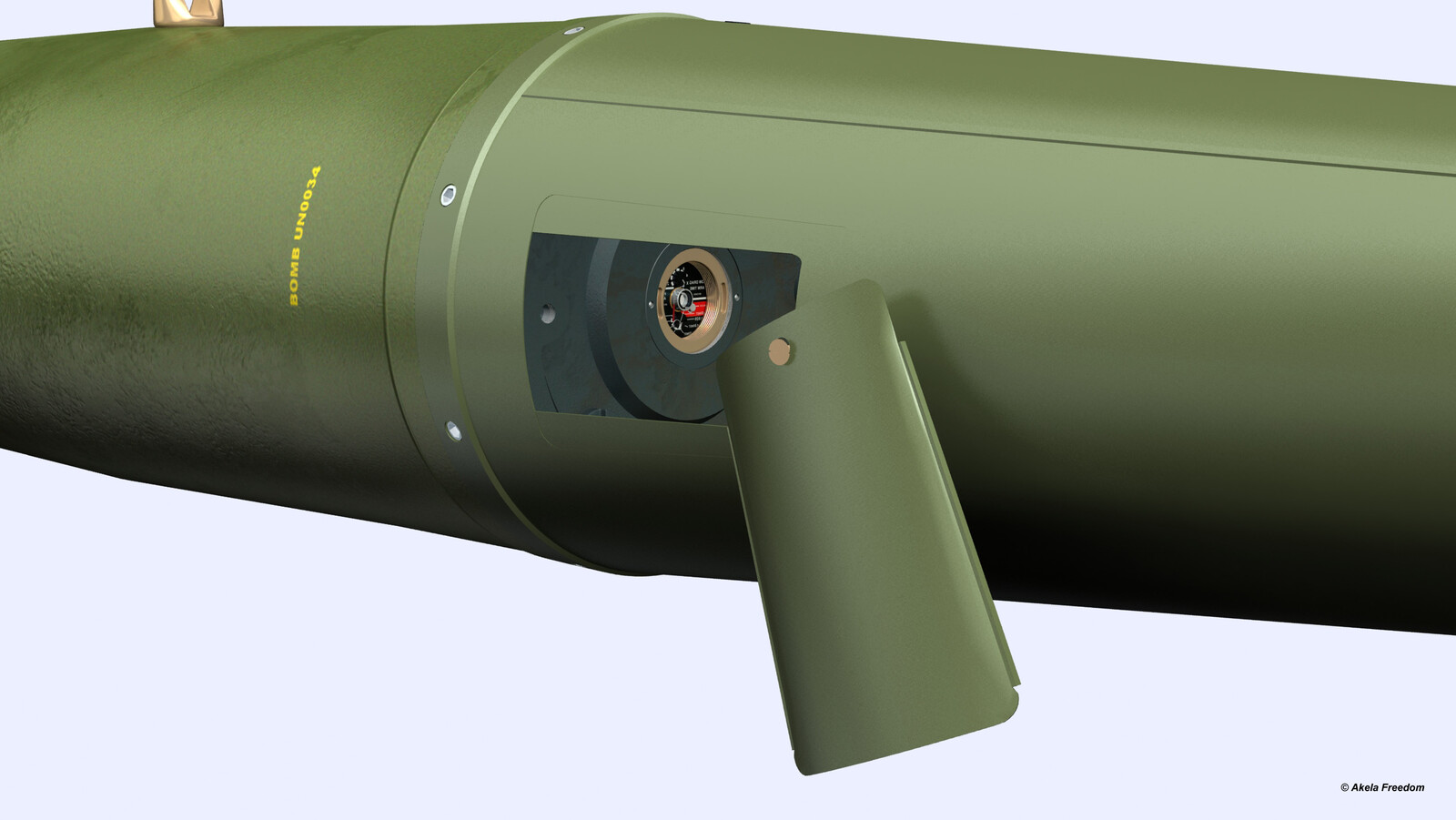

The conical fin has an access cover on the side for access to a tail fuze. This cover is held in place by fasteners.

MK-84 in details:

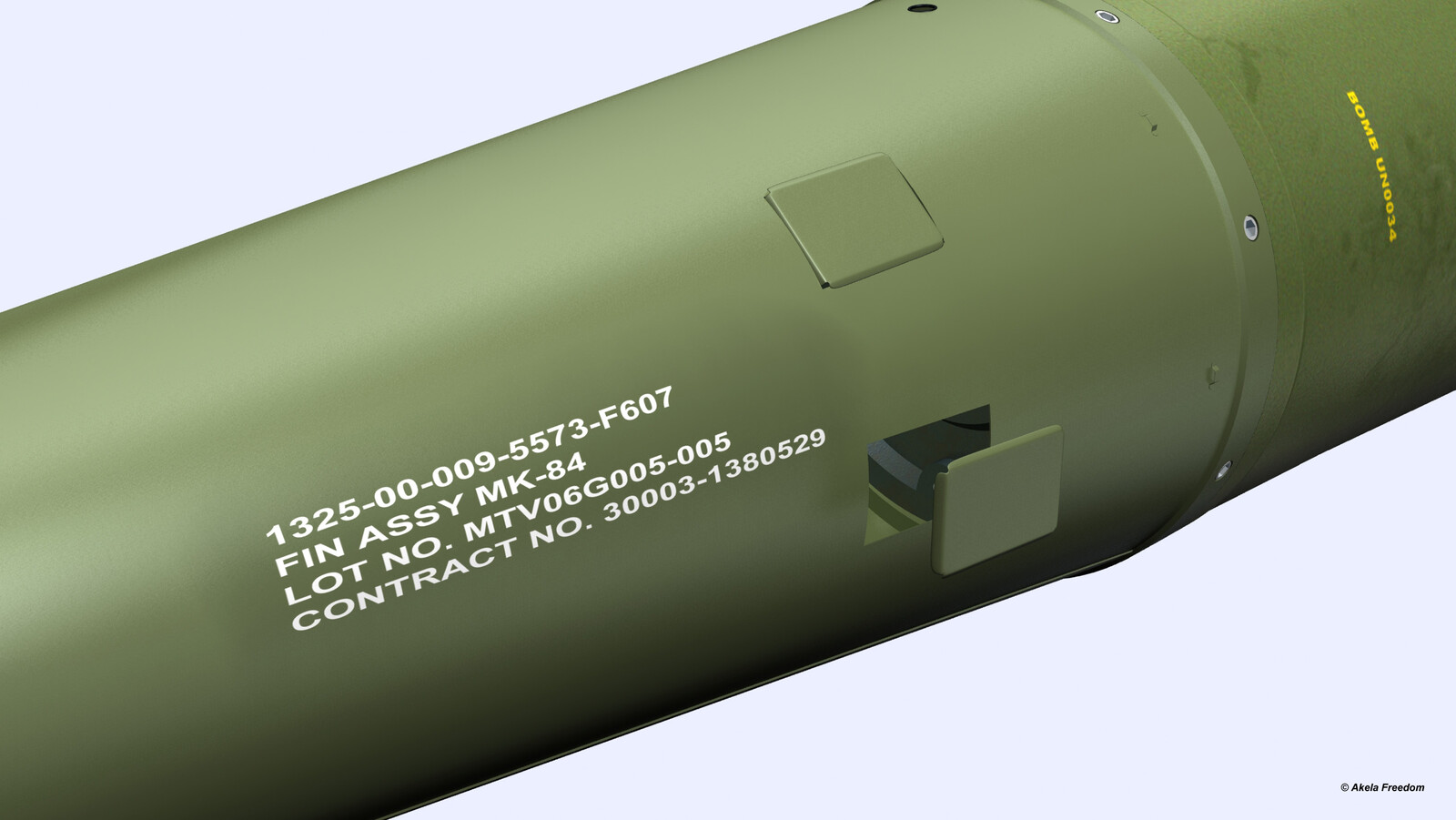

On the other hand, there are two flaps for installing an additional mechanical fuze M905.

Shipping Configuration for MK-84:

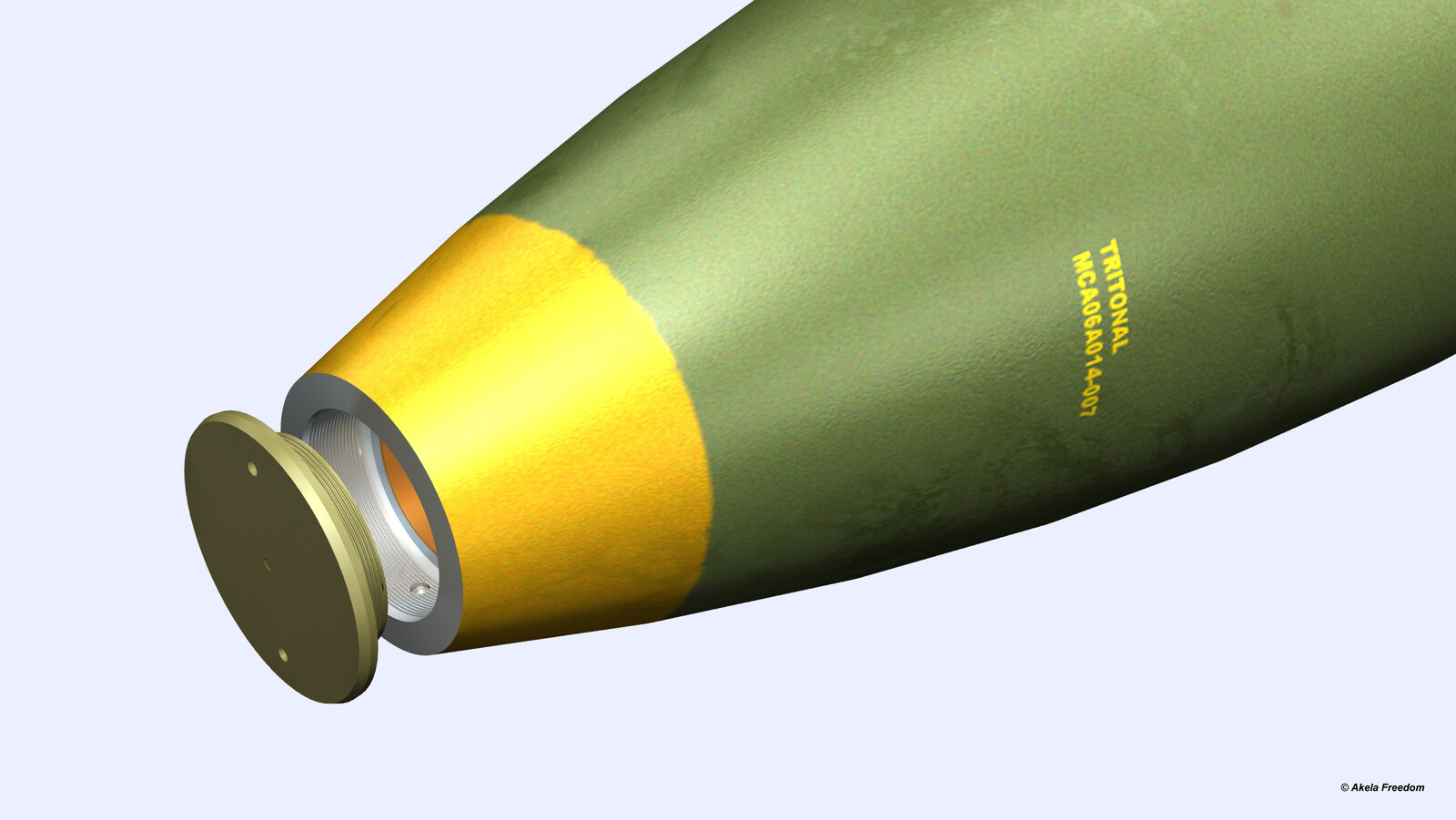

The plastic plug installed in the nose and tail fuze well to prevent damage to the internal threads and keep out moisture.

Shipping Configuration for MK-84:

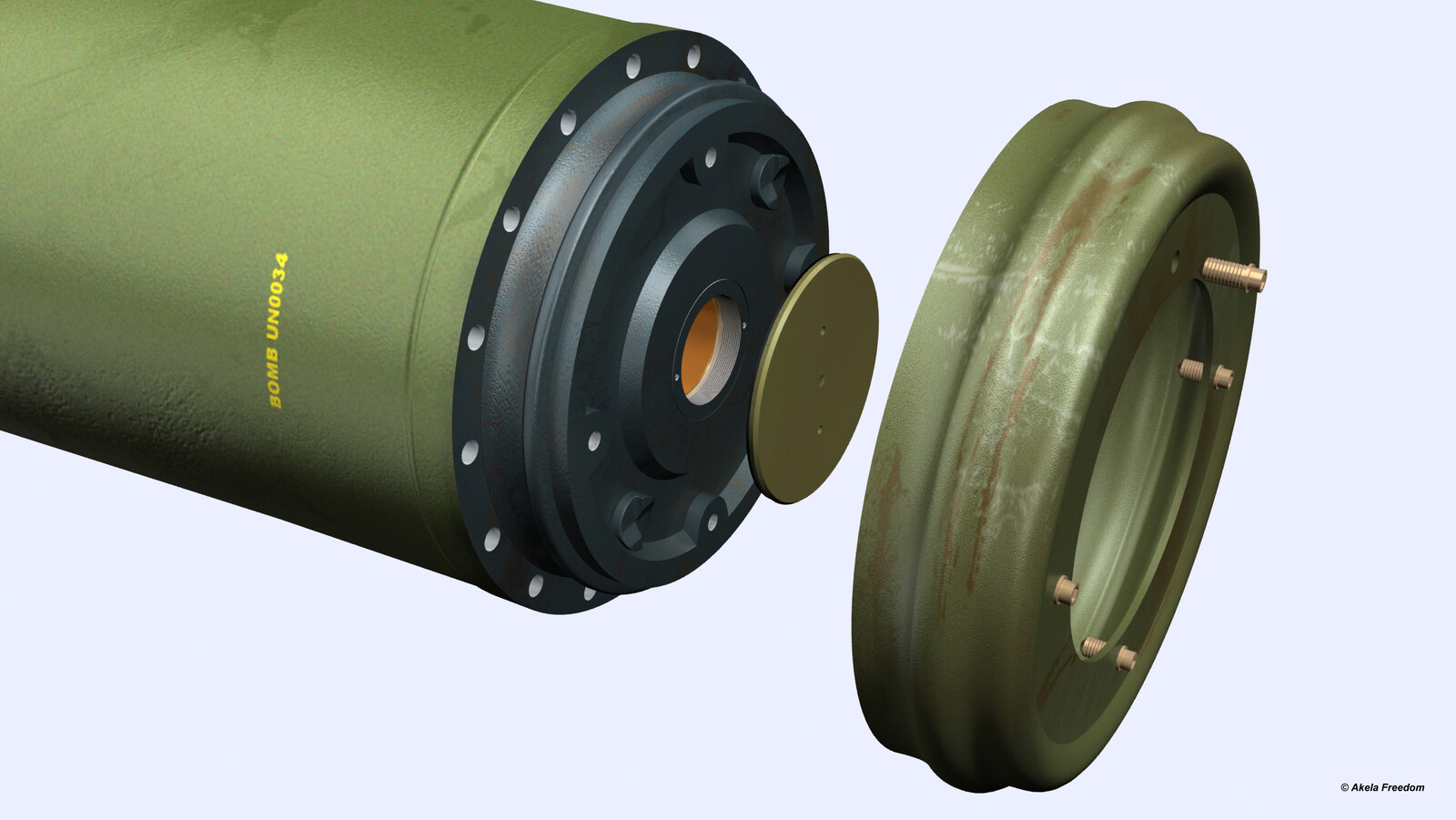

The aft end of the bomb body has a metal shipping cap installed.

Shipping Configuration for MK-84:

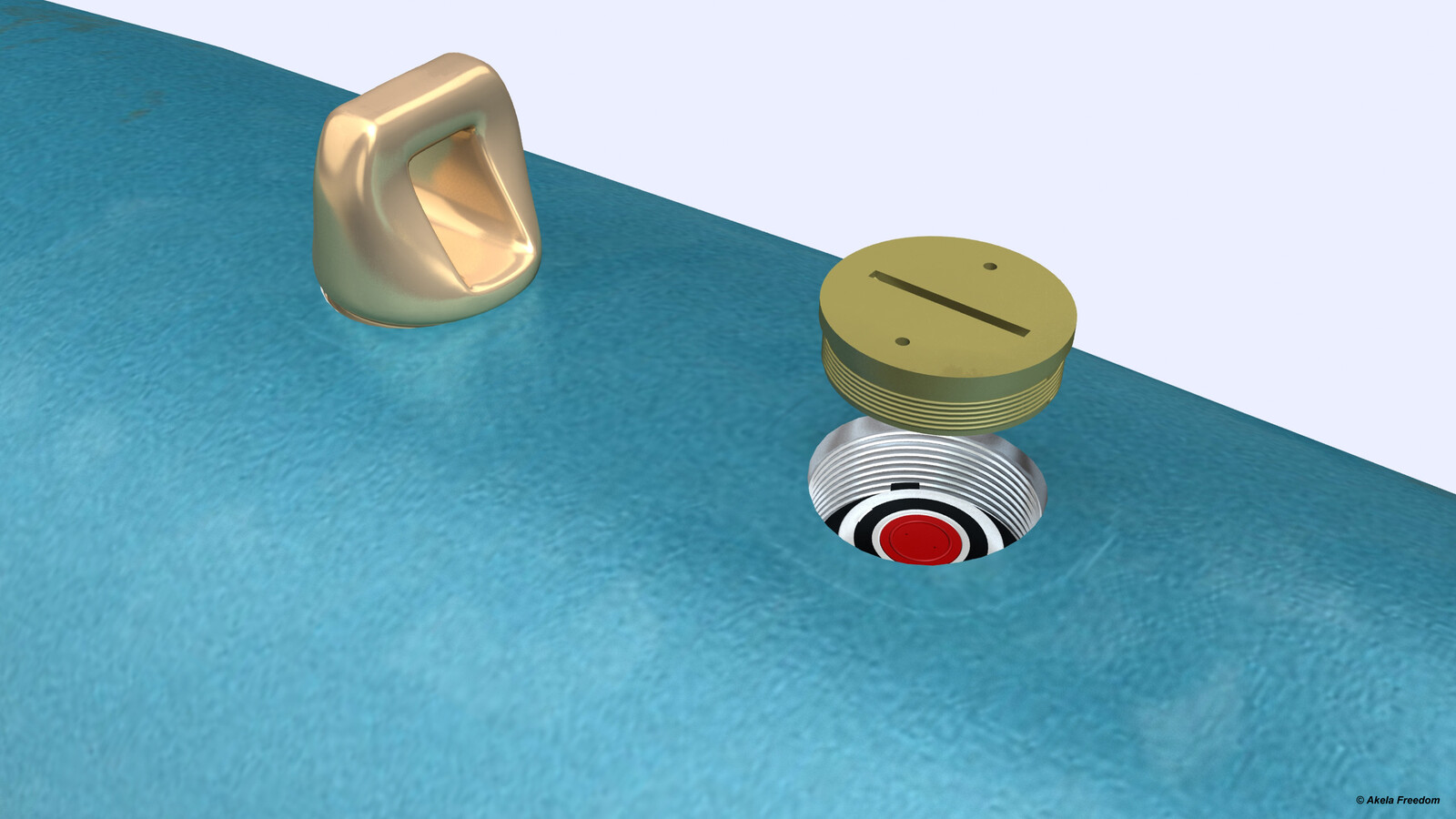

A plastic plug is installed in the charging receptacle well.

Shipping Configuration for MK-84:

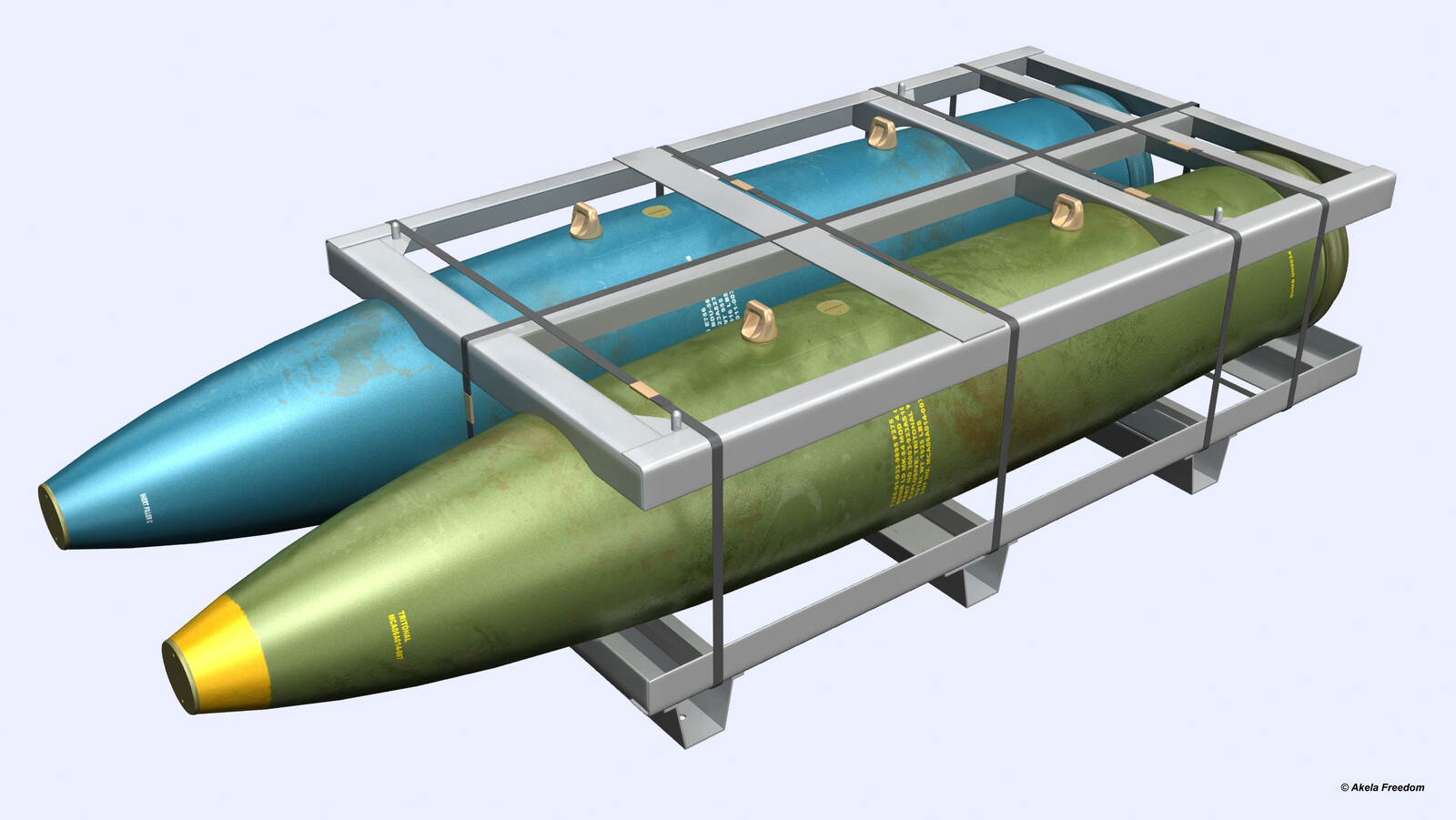

Bombs are shipped on metal pallets. Two Mk 84/BLU 117 bombs can be shipped on a pallet.

Shipping Configuration for MK-84:

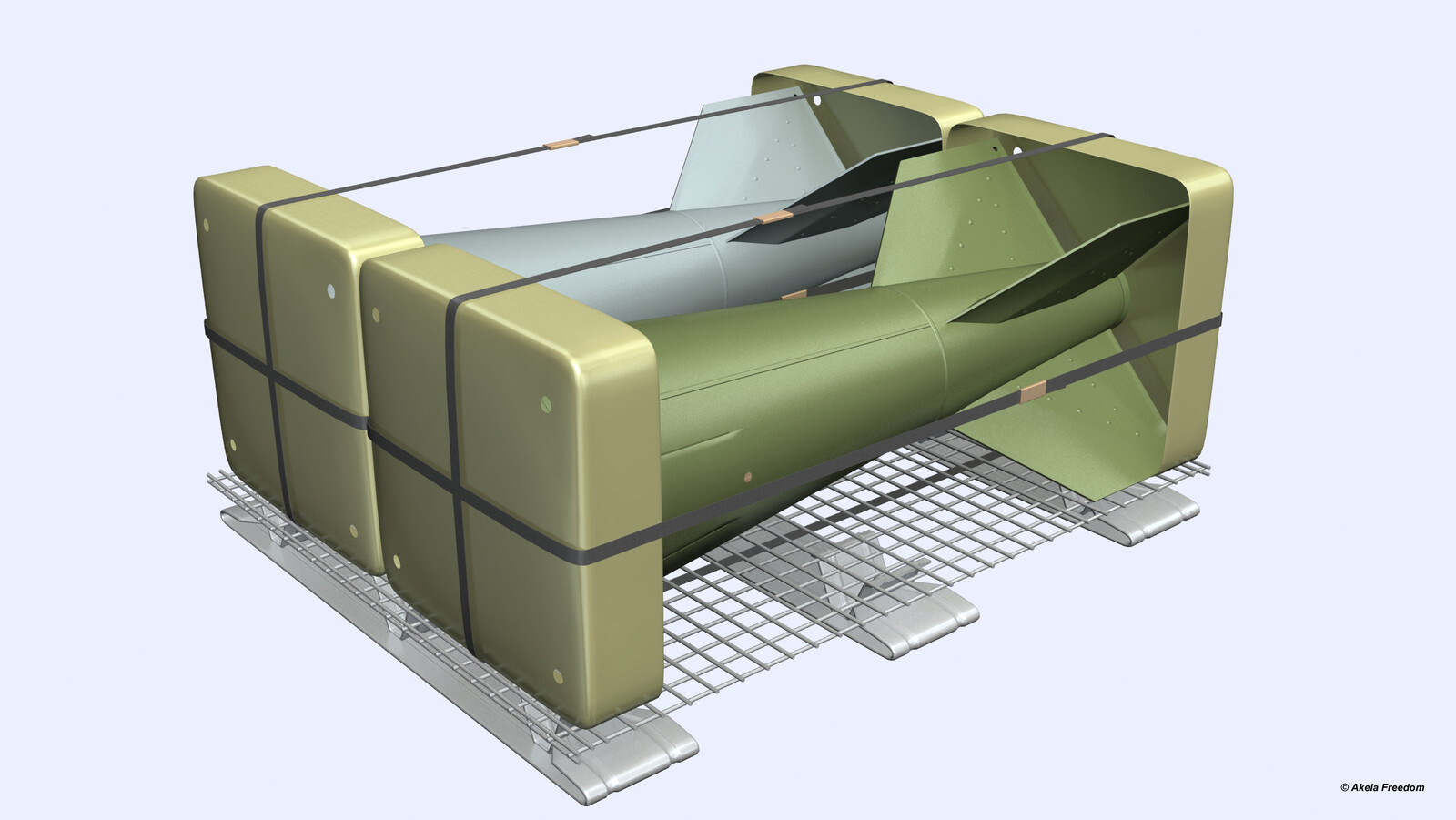

Each individual fin is crated in a lightweight, disposable metal crate and shipped on metal pallets.
